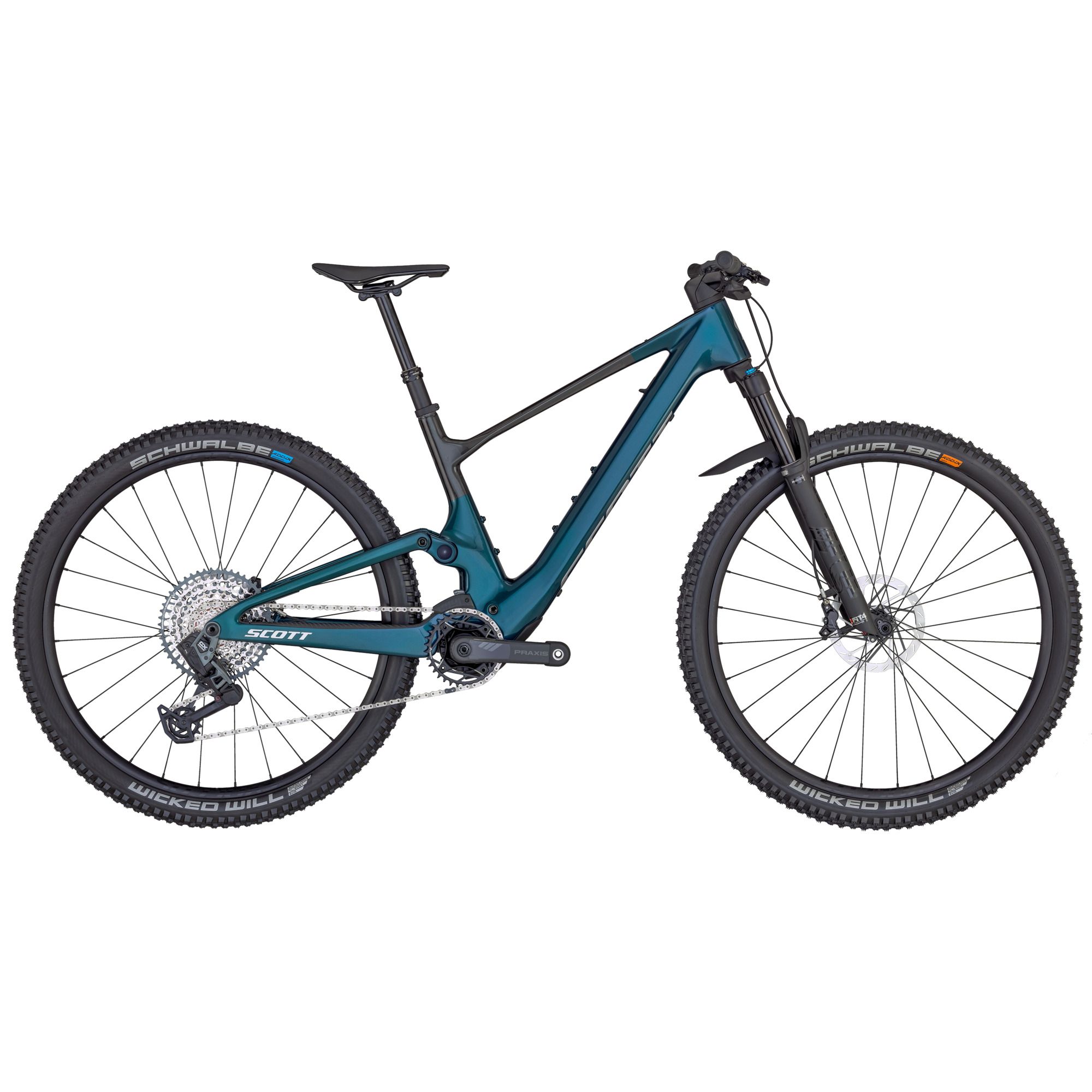

CadreCarbon HMXIntegrated Suspension TechnologyFlex Pivot / Adjustable head angleSyncros Cable Integration SystemTQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
DébattementFront: 130mm / Rear: 130mm
FourcheFOX 34 Float Performance Elite Air FIT43 modes with low Speed adj. / Kabolt 15x110mm axle44mm offset / tapered steerer / Reb. Adj. / Lockout130mm travel
Amortisseur arrièreFOX NUDE 6T EVOL TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-DescendLow Speed Adj. / Custom large Air volume / Reb. Adj.Bearing Hardware / Travel 130-90-Lockout / T165X45mm
Levier de contrôleSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes
MoteurTQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
BatterieTQ Internal 360Wh
EcranTQ HPRBluetooth / ANT+ / Dedicated Smartphone app
ChargeurTQ 100-240V-4A
Dérailleur arrièreSRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
Manettes de dérailleurSRAM GX Eagle AXS Rocker Controller
PédalierFSA Carbon crankset / 175mm / 34T
Guide-chaînee*thirteen / e*spec Slider
PlateauScott custom spider / SRAM Eagle Transmission 34T chainring
ChaîneSRAM CN GX Eagle Transmission
CassetteSRAM GX Eagle XS 1275 Transmission 10-52
FreinsSRAM Level Silver Stealth 4-Piston Disc
Disque de freinSRAM HS2 CL Rotors / F&R 180mm
CintreSyncros Fraser iC SL DC Carbon0° rise / back sweep 8° / mini Rise / 760mmSyncros Performance XC lock-on grips
Tige de selleFOX Transfer Dropper Post31.6mm / S size 125mm / M size 140mmL size 150mm / XL size 175mm
SelleSyncros Tofino 1.5 RegularTitanium rails
Jeu de directionSyncros – Acros Angle adjust & Cable Routing HS SystemStainless+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Paire de rouesSyncros Silverton 1.5-30 CLF: 15x110mmR: 12x148mm30mm Tubeless ready rim 28H / XD DriverSyncros Axle w/Removable Leverwith 6mm AllenT30 and T25 Tools
Pneu avantSchwalbe Wicked Will 29×2.4″ EVOSuper Race / TLE / 67EPI / Addix Speed Soft
Pneu arrièreSchwalbe Wicked Will 29×2.4″ EVOSuper Race / TLE / 67EPI / Addix Speed Grip
ExtrasSRAM AXS PowerpackSyncros Fork Fender
Accessoires véloSyncros Eco SealantTransport Axle
Poids en Kg (App.)16.6 (with tubes)
